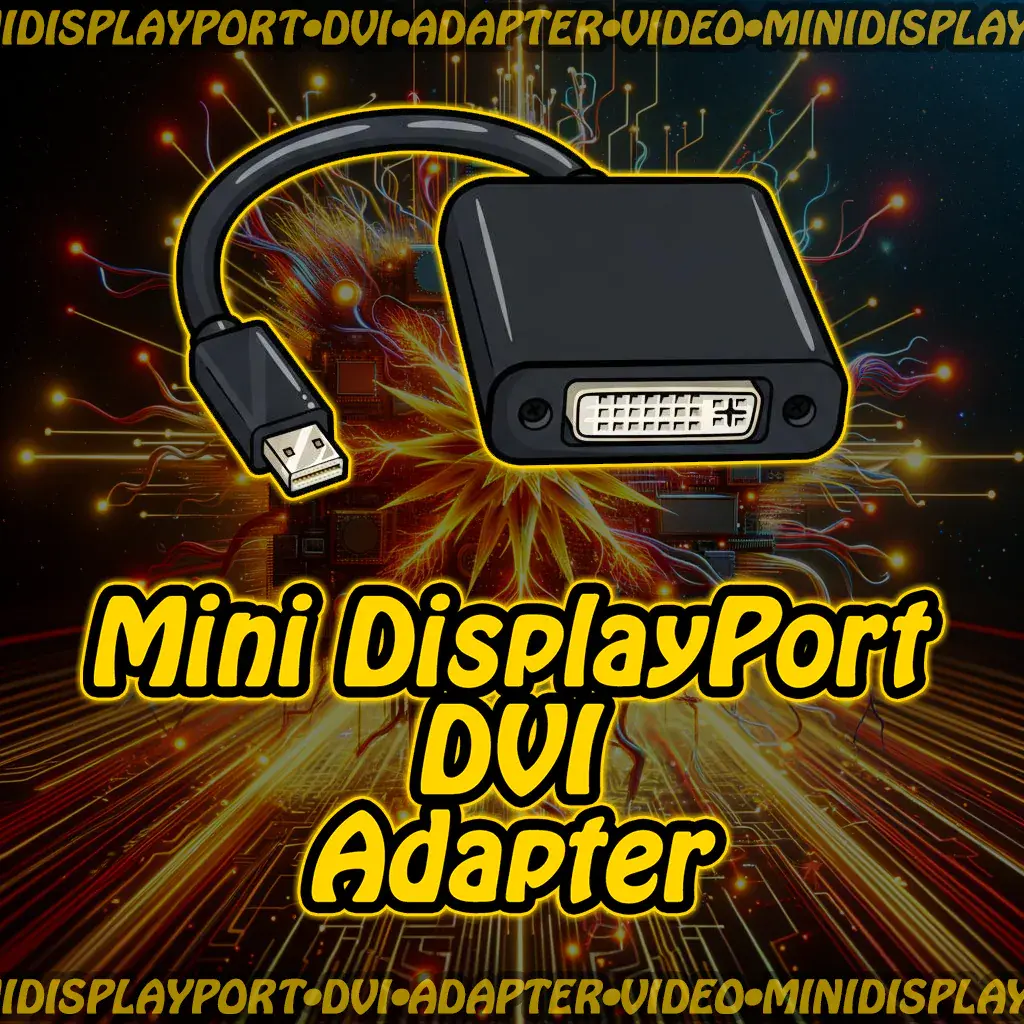

🧠🖥️ Mini DisplayPort • DVI Adapter

This adapter converts a Mini DisplayPort output into a DVI-D signal, allowing newer laptops and compact PCs to interface with older monitors and projectors. It’s ideal for bridging digital workflows across generations of display tech.

🔧 Adapter Format & Use Case
🔌 Mini DisplayPort Male → DVI-D Female
Accepts Mini DP signal from source device
Outputs to a standard DVI-D cable for connection to display
Compact, passive adapter—no external power or drivers needed

🖥️ Compatible Devices
💻 MacBook, MacBook Pro, MacBook Air (2008–2015)
🖥️ iMac and Mac mini with Mini DisplayPort or Thunderbolt 1/2
🧠 Microsoft Surface (Pro 1–3, Surface Book)
🧬 Intel NUC, embedded boards with Mini DP output
🖼️ DVI-D monitors, projectors, and AV switchers

✅ Common Uses
🧠 Connect Mini DP laptops to legacy DVI monitors
🛠️ Enable dual-screen setups in office or studio environments
🧰 Integrate embedded systems with DVI-based control panels
📐 Use with color-accurate DVI displays for design workflows
🔁 Bridge Thunderbolt 1/2 ports to DVI infrastructure

🧠 Signal Format Notes
⚙️ DVI-D (digital only)—no analog signal support
📺 Supports resolutions up to 1920×1200
🔌 Mini DisplayPort uses 20-pin connector (compact form factor)
🚫 No audio transmission—DVI is video-only
🔁 Thunderbolt 1/2 ports are Mini DP-compatible for video output

⚠️ Things to Watch Out For
🚫 Not compatible with DVI-A or DVI-I analog displays
🧪 No support for bidirectional use—Mini DP must be the source
📉 No audio passthrough—use separate audio output if needed
🧯 Adapter quality affects signal stability—avoid ultra-cheap clones
🛠️ Requires a separate DVI cable—adapter is not a full cable solution

🛠️ Quick Tips for Beginners
🧠 Identify Mini DisplayPort by its small rectangular shape (~7mm wide)
🔄 Plug Mini DP into the source device, DVI cable into the adapter
🧼 Clean ports gently—dust can cause flickering or dropouts
🏷️ Label clearly—Mini DP looks similar to Thunderbolt 1/2
🎨 Use with DVI-D monitors for sharp, lag-free video
