🧠🖨️ CN36 • CN36 Cable

These cables connect devices using the CN36 Centronics interface, typically found on printers, print servers, and industrial controllers. Male/male cables are used for direct device-to-device links, while male/female cables serve as extension or gender adapters.

🔧 Cable Variants & Use Cases

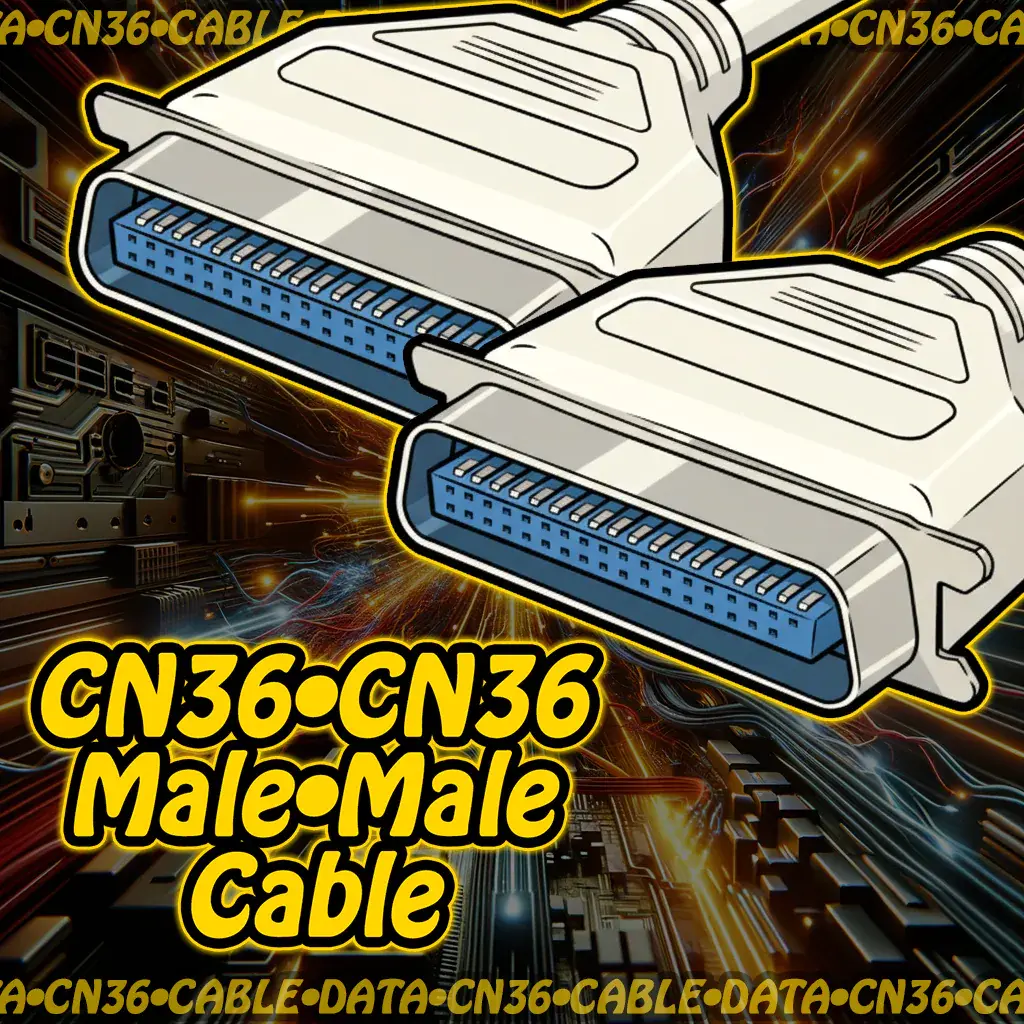

🔌 CN36 Male → CN36 Male
Use Case: Direct connection between two female CN36 ports
Devices: Print server → printer, or controller → label printer
Common in standard parallel setups

🖥️ Compatible Devices
🖨️ Printers with Centronics CN36 input (HP, Epson, Lexmark, Canon)
💻 Print servers and parallel interface cards
📦 Label printers and industrial print modules
🧠 Embedded systems and automation gear
🛠️ AV switchers and control panels using parallel signaling

✅ Common Uses
🧠 Connect host device to CN36-equipped printer
🛠️ Extend CN36 cable runs in office or industrial setups
🔁 Adapt gender mismatches in modular AV racks
📡 Maintain IEEE-1284 parallel communication
🧪 Test printer ports using flexible cable configurations

🧠 Signal Format Notes
⚙️ CN36: 36-pin Centronics-style connector
📡 IEEE-1284 standard supports bidirectional parallel communication
📉 Transfer rates typically up to 1 Mbps
🔁 Straight-through wiring—pin 1 to pin 1, etc.
🔊 No audio—used strictly for data and control signals

⚠️ Things to Watch Out For
🚫 Not compatible with Mini CN36 or DB25—check connector type
🔌 Gender mismatch can block connection—verify before use
🧯 Some printers require full IEEE-1284 compliance for status reporting
📉 Long cables may reduce signal integrity—keep under 10 ft for best results
🧪 Always confirm pin mapping before deployment

🛠️ Quick Tips for Beginners
🧠 Identify CN36 by its wide rectangular 36-pin shell
🔍 Use molded connectors with strain relief for durability
🧲 Choose shielded cables to reduce EMI/RFI interference
🧼 Clean contacts gently—dust can cause print errors or signal loss
🏷️ Label both ends clearly—especially in shared office or lab setups
