🖧 Mini-DVI Adapter

Mini-DVI was Apple’s compact video output standard found on select MacBooks, iMacs, and PowerBooks. It supports both analog and digital signals, enabling multiple adapter types for external display connectivity.

🔧 Adapter Formats & Use Cases

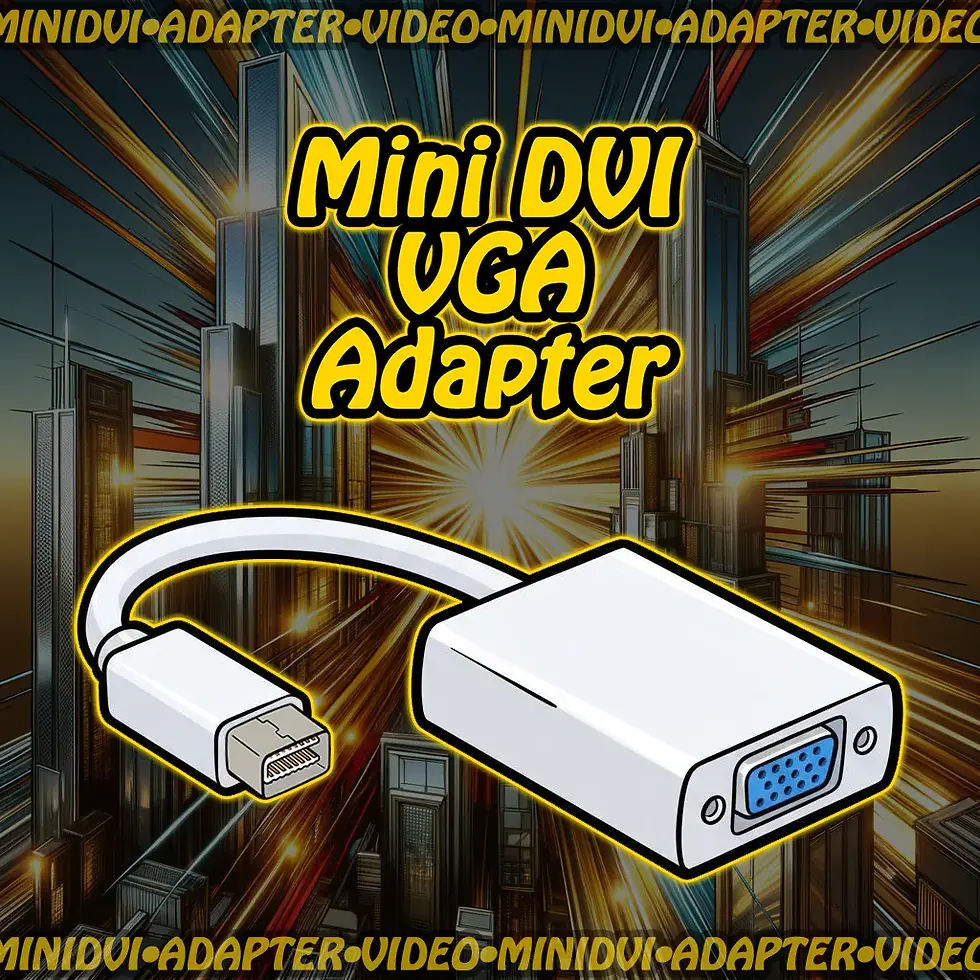

🔌 Mini-DVI → VGA (Analog)
Connects to legacy monitors and projectors
Ideal for classrooms, offices, and archival setups
Transmits analog video only (no audio)
🔌 Mini-DVI → HDMI (Digital)
Connects to modern TVs and monitors
Supports digital video (up to 1080p)
Requires separate audio routing—Mini-DVI doesn’t carry sound
🔌 Mini-DVI → DVI-D (Digital)
Connects to digital monitors (DVI-D or DVI-I)
Preserves full digital signal quality
No audio support—pure video transmission
🔌 Mini-DVI → Composite RCA (Analog)
Connects to CRT TVs and analog AV gear
Outputs low-res video (typically 480i)
Requires active conversion for signal compatibility

🖥️ Compatible Devices
💻 Apple MacBook (2006–2008 models)
🖥️ iMac G5 and early Intel iMacs
📚 MacBook Air (1st Gen, 2008)
🧠 Some PowerBooks and Mac minis
📺 External displays with VGA, HDMI, DVI, or RCA inputs

✅ Common Uses
🧠 Extend or mirror display to external monitors
🎥 Connect Mac to TVs or projectors for media playback
🛠️ Enable presentations or dual-screen workflows
📼 Interface with legacy AV setups for retro computing
🔁 Convert Mini-DVI output to match modern or vintage inputs

🧠 Signal Format Notes
⚙️ Mini-DVI supports both analog and digital video
📉 No native audio—HDMI adapters require separate audio routing
🔌 VGA and Composite adapters transmit analog only
📺 HDMI and DVI adapters transmit digital video
🔁 Resolution support varies by adapter (up to 1920×1200 for DVI/HDMI)

⚠️ Things to Watch Out For
🚫 Mini-DVI ≠ Micro-DVI or Mini DisplayPort—don’t confuse formats
🧪 Composite RCA adapters may need active conversion for compatibility
📉 No support for audio passthrough—use separate audio cable
🧯 Fragile connector—avoid stress or repeated unplugging
🛠️ Some adapters are Mac-specific—check compatibility before use

🛠️ Quick Tips for Beginners
🧠 Identify Mini-DVI by its rectangular shape with beveled corners (~1.5 cm wide)
🔄 Always match adapter type to your display input (VGA, HDMI, etc.)
🧼 Clean contacts gently—dust can cause signal drop
🏷️ Label adapters clearly—Mini-DVI looks similar to other Apple ports
🎨 Use HDMI or DVI for best video quality; VGA and RCA for legacy setups
