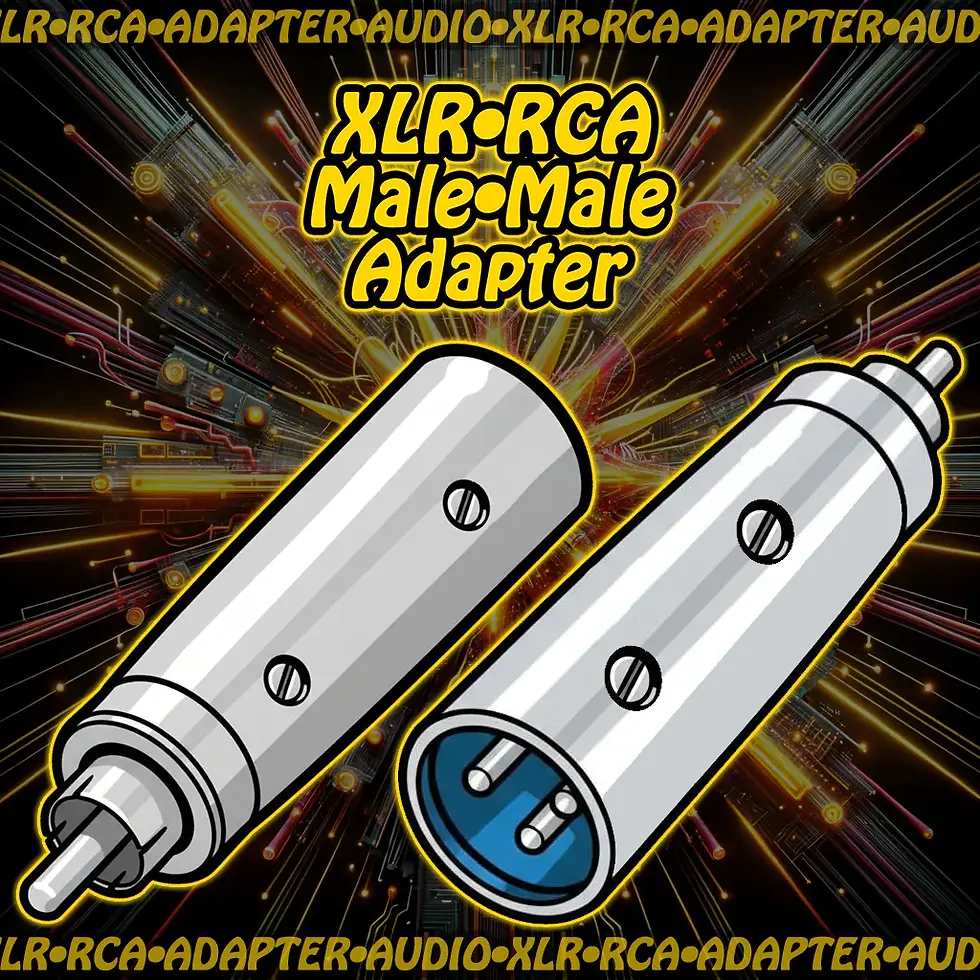

🎛️🔌 Composite RCA • XLR Adapter

This passive adapter allows physical connection between consumer-grade RCA jacks and professional XLR ports. While primarily used for audio, it’s occasionally repurposed for composite video in custom setups. No signal conversion occurs—just connector format bridging.

🔧 Converter Form
RCA female → XLR male (most common for output-to-input routing)
RCA female → XLR female (used for patching or chaining)
Inline barrel adapter or short patch cable
Passive only—no active electronics or signal processing
Some rare variants include impedance-matching resistors

🖥️ Compatible Devices
📼 RCA side:
VCRs, DVD players, camcorders
Consumer audio mixers and preamps
Surveillance DVRs with RCA audio or video output
🎚️ XLR side:
Professional audio mixers and interfaces
PA systems and powered speakers
Rack-mounted audio gear and patch bays

✅ Common Uses
🔊 Connect RCA audio output to XLR input on pro audio gear
🎛️ Integrate consumer AV sources into balanced audio setups
📡 Occasionally route composite video through XLR in experimental setups
🧩 Useful in hybrid AV environments mixing consumer and professional equipment

🧠 Signal Format
🎵 RCA: Unbalanced analog signal
Typically line-level audio or composite video
🎙️ XLR: Balanced analog signal
Standard for professional audio
🔁 No signal conversion—adapter does not balance or reprocess signal
📺 Composite video over XLR is technically possible but not standardized

⚠️ Things to Watch Out For
🚫 No signal balancing—may introduce hum or interference
🌀 Ground loop risk when mixing consumer and pro gear
📉 Impedance mismatch can cause distortion or weak signal
🎤 XLR connectors may be mistaken for mic inputs—label clearly
🧪 Not suitable for video unless used in matched, experimental setups

🛠️ Quick Tips for Beginners
🧵 Use only for short runs—RCA is vulnerable to noise
🔌 For audio, consider active RCA-to-XLR converters for better fidelity
🧯 Avoid using these for composite video unless you're working in a controlled setup
🧭 Match adapter gender to your gear: RCA female → XLR male is most common
🧪 Always test signal integrity before deploying in live or critical environments
