🔌🧩 DC Barrel Power Adapter

DC barrel adapters allow you to convert between different plug sizes and genders, enabling flexible power connections across devices, cables, and extension setups. They’re essential for adapting power supplies, extending reach, and customizing voltage delivery in embedded, AV, and lighting systems.

🔧 Size Pairings
1️⃣ 5.5mm / 2.1mm ↔ 5.5mm / 2.1mm
Use Case: Gender conversion or extension within standard barrel format
Example: Male-to-Male for joining two female jacks; Female-to-Female for linking two male plugs
Note: Most common size in consumer electronics

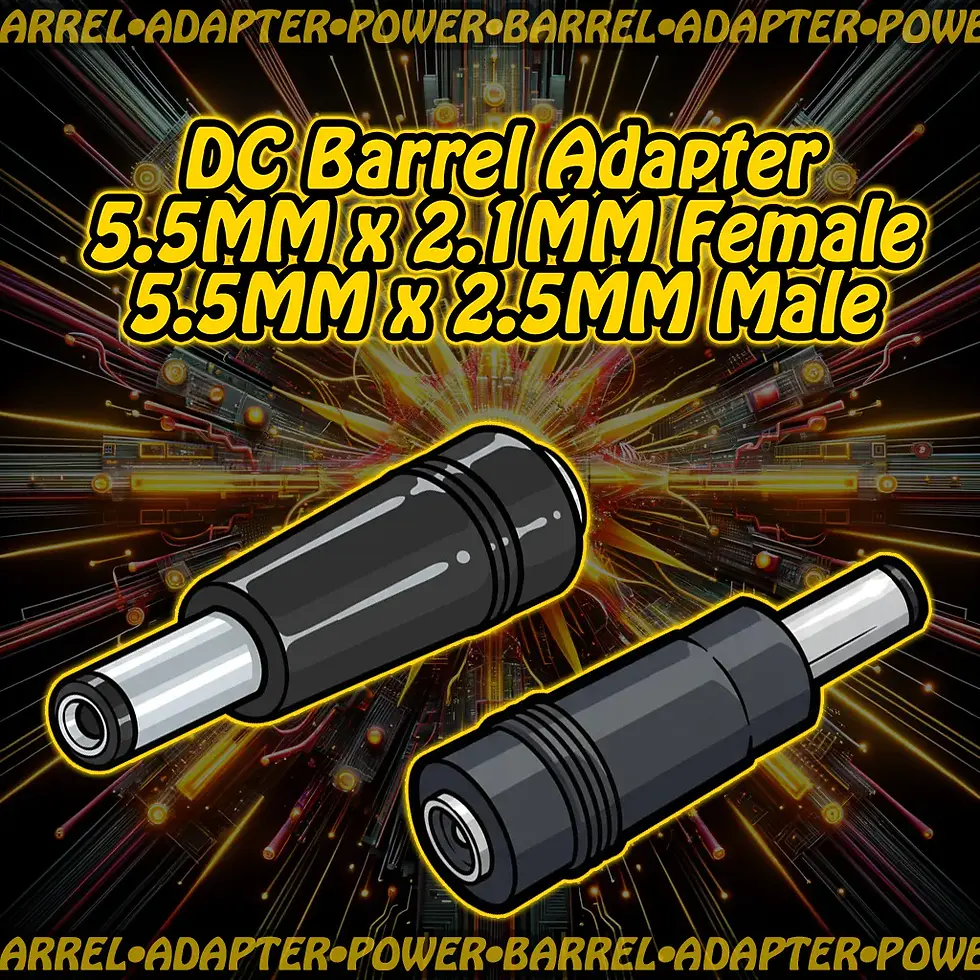

2️⃣ 5.5mm / 2.1mm ↔ 5.5mm / 2.5mm
Use Case: Bridge between slightly different inner pin diameters
Example: Power supply with 2.1mm plug → device with 2.5mm jack
Note: Outer diameter matches; inner pin size differs—check fit before use
3️⃣ 5.5mm / 2.1mm ↔ 3.5mm / 1.35mm
Use Case: Adapt standard-size power to mini devices
Example: 12V adapter → IR blaster, mini router, or embedded board
Note: Used in low-power, compact gear
4️⃣ 5.5mm / 2.1mm ↔ 4.0mm / 1.7mm
Use Case: Connect standard 12V supply to Kenwood radios, mini fans, or small routers
Example: 5.5/2.1mm plug → 4.0/1.7mm jack
Note: Common in 4.5V–6V devices; verify voltage compatibility before use
5️⃣ 5.5mm / 2.5mm 90° Adapter
Use Case: Right-angle conversion for tight spaces or rear-mounted DC jacks
Example: 5.5/2.5mm plug → 5.5/2.5mm jack at 90° angle
Note: Useful for wall-mounted gear, AV racks, or embedded enclosures

🔁 Gender Formats
🔹 Male-to-Male
Use Case: Join two female jacks or extend power from splitter
Example: Power hub → extension cable
Note: Often used with inline switches or panel mounts
🔹 Male-to-Female
Use Case: Inline adapter or format bridge
Example: 5.5/2.1mm plug → 3.5/1.35mm jack
Note: Most versatile format for adapting cable ends
🔹 Female-to-Male
Use Case: Reverse patching or device-side conversion
Example: 3.5/1.35mm plug → 5.5/2.1mm jack
Note: Useful for converting device input to match available supply
🔹 Female-to-Female
Use Case: Join two male plugs or extend power from device
Example: Male plug from PSU → male plug from extension
Note: Often used in splitter or daisy-chain setups

🖥️ Compatible Devices
📷 CCTV cameras and DVRs
💡 LED strips, signage, and lighting panels
📡 Routers, modems, and embedded boards
🔊 Audio amplifiers and small speaker systems
🧰 Power hubs, splitters, and control boxes
🧪 Prototyping rigs and test benches

✅ Common Uses
🔄 Adapt power supply plug to match device input
🧩 Convert between barrel sizes for modular setups
🛠️ Extend or split power lines with gender bridges
🔧 Patch mismatched cables without soldering
🧪 Test power delivery across different formats

🧠 Signal Format Notes
Voltage Range: Typically 5V–48V DC
Current Capacity: Depends on gauge and connector quality
Polarity: Usually center-positive—always verify
No Conversion: Adapter does not change voltage or current
❗ Match both size and gender for proper fit and function

⚠️ Things to Watch Out For
🔌 2.1mm vs 2.5mm inner pin—looks similar but may not fit snugly
📏 Longer chains may cause voltage drop—use thicker gauge if needed
🧯 Confirm polarity before connecting—reverse polarity can damage gear
🔄 3.5/1.35mm adapters are lower current—don’t overload
🧪 Test with multimeter if unsure about voltage or connector fit

🛠️ Quick Tips for Beginners
🔍 Measure both outer and inner diameters before buying
🧭 Use labeled adapters to avoid confusion in multi-voltage setups
🧰 Keep a mix of gender and size adapters in your toolkit
🧪 Test adapter fit gently—don’t force mismatched plugs
🧼 Store adapters in a sorted box to prevent pin damage
