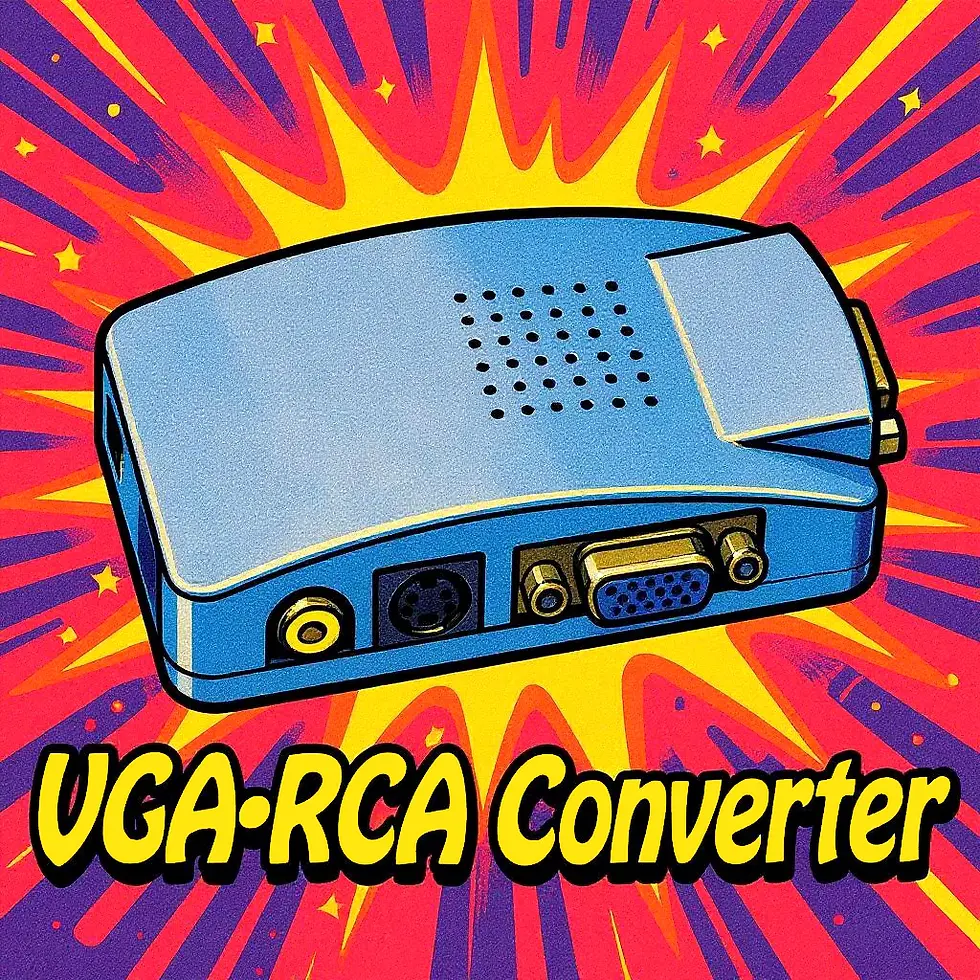

🖥️📺 VGA • Composite RCA Converter

These converters bridge two distinct analog video formats: VGA (RGBHV, 15-pin) and Composite RCA (CVBS, yellow plug). Because VGA and RCA use different signal structures, active electronics are required—simple adapters won’t work. Each direction serves a unique role in retro setups, AV testing, and display integration.

🔄 Converter Types
1️⃣ VGA → Composite RCA Converter
Purpose: Display VGA output (from PC/laptop) on a TV or monitor with RCA input
Input: VGA (15-pin D-sub, typically from a computer)
Output: Composite RCA (yellow plug, NTSC/PAL video)
Use Case: Connect modern PC to CRT TV or analog projector
Features:
Active signal conversion (requires power)
May include S-Video output for flexibility
Resolution support up to 1600×1200
Aspect ratio and scan control (underscan/overscan)
2️⃣ RCA/BNC/S-Video → VGA Converter
Purpose: Display RCA/BNC/S-Video video (from DVD, console, CCTV) on a VGA monitor
Input: Composite RCA/BNC/S-Video
Output: VGA (15-pin D-sub, for computer monitors/projectors)
Use Case: View legacy video sources on VGA-only displays
Features:
Active scaler with resolution adjustment
USB or wall-powered
Output up to 1920×1200
May include S-Video input and audio passthrough

🖥️ Compatible Devices
🖥️ VGA → RCA
Desktop PCs, laptops, media players
CRT TVs, VCRs, analog switchers
Presentation setups with legacy projectors
📼 RCA → VGA
DVD players, retro consoles (PS1, N64, etc.)
CCTV cameras, DVRs
VGA-only monitors, older projectors

✅ Common Uses
🕹️ Retro gaming on CRT TVs using PC emulators (VGA → RCA)
📽️ Surveillance feeds on VGA monitors (RCA → VGA)
🧪 AV testing and signal routing in hybrid setups
🧩 Connecting legacy DVD players to modern displays
🧱 Bridging old and new tech in museums, labs, classrooms

🧠 Signal Format Notes
VGA = RGBHV (separate Red, Green, Blue, Horizontal Sync, Vertical Sync)
RCA = Composite (combined video signal over one wire)
❗ Requires active conversion—no direct electrical compatibility
🧲 Some units include PAL/NTSC switching and aspect ratio control

⚠️ Things to Watch Out For
🚫 Passive VGA-to-RCA cables don’t work—must use powered converter
🔌 Confirm resolution compatibility with your display
🧪 RCA → VGA converters may introduce latency or scaling artifacts
📏 VGA is progressive scan; RCA is interlaced—expect quality drop
🧯 Always check for PAL/NTSC support when using international gear

🛠️ Quick Tips for Beginners
🔍 Look for “active converter” or “video scaler” in product description
🧭 Match input/output ports carefully—direction matters
🔌 Use USB or wall power as required—these aren’t plug-and-play cables
🧪 Test with known-good sources before deploying in permanent setups
🎮 For retro gaming, VGA → RCA gives authentic CRT output with PC emulators
