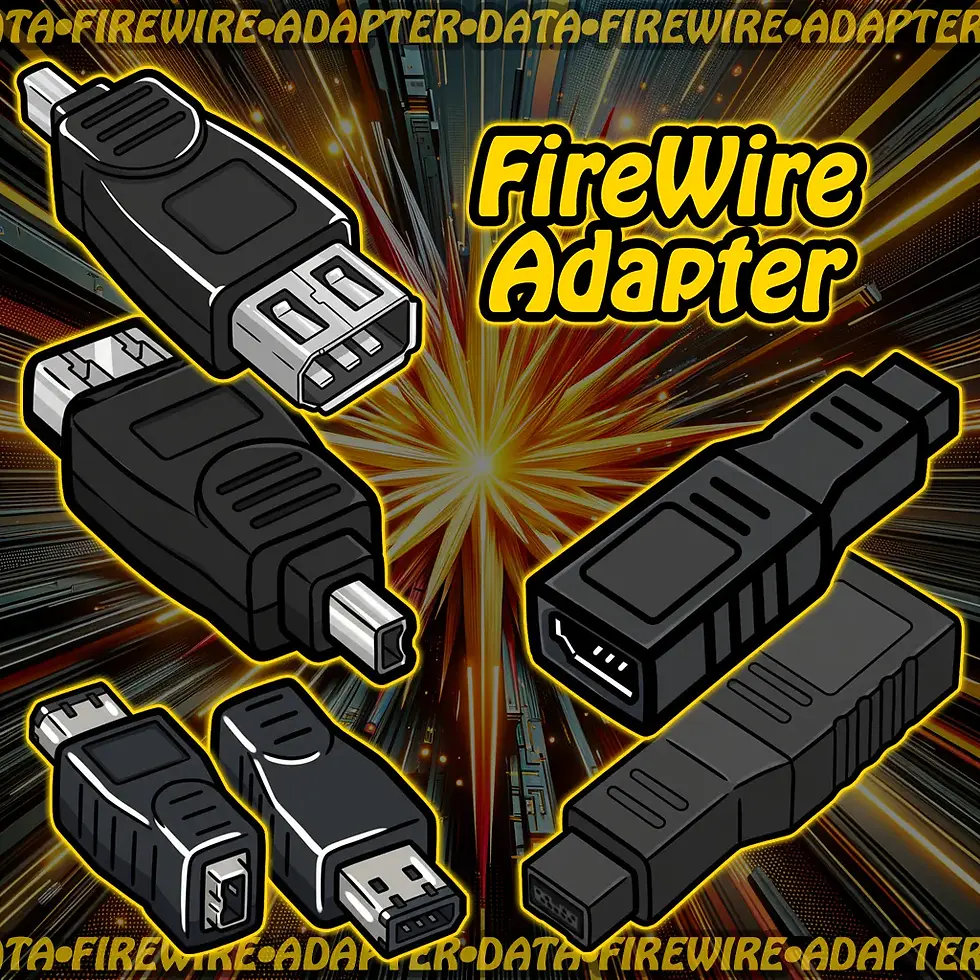

🔥📡 FireWire • FireWire Adapter

These adapters convert between FireWire connector types—allowing cross-compatibility between devices with 4-pin, 6-pin, and 9-pin ports. They’re used to connect camcorders, audio interfaces, and legacy computers across FireWire 400 and 800 standards.

🔧 Adapter Forms

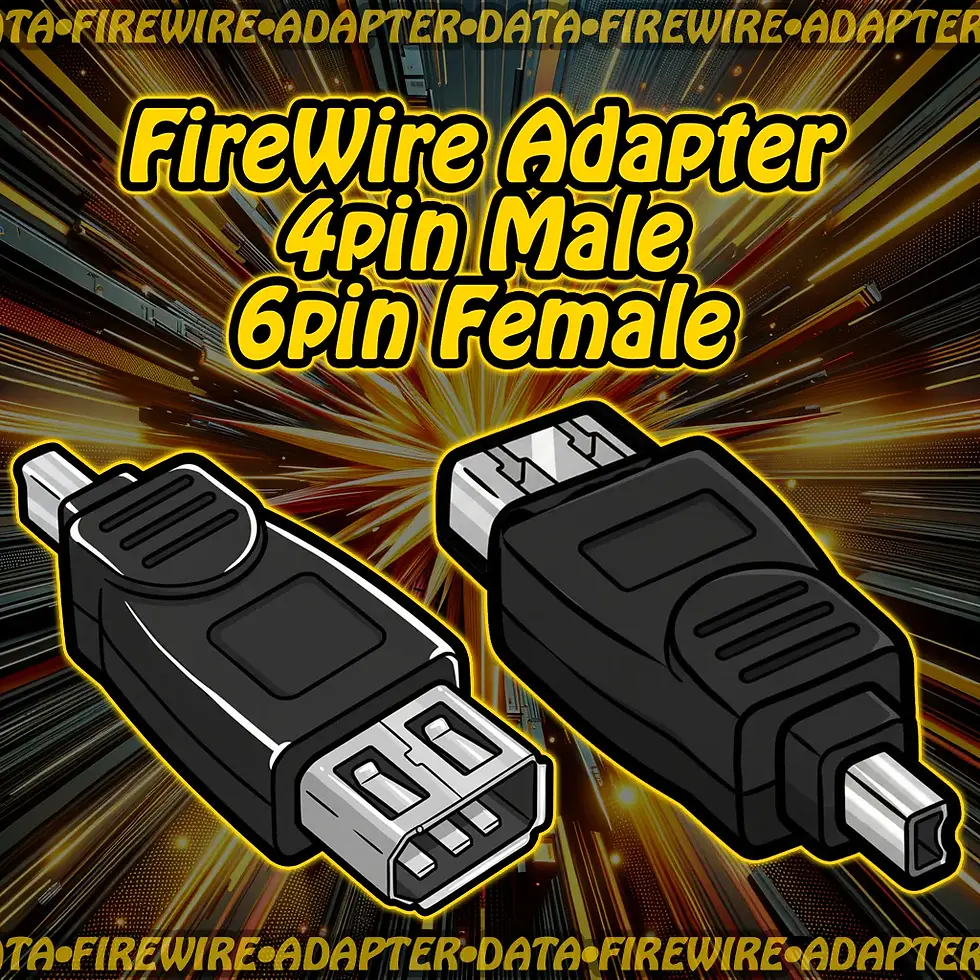

4-pin male → 6-pin female
Connects 4-pin DV device (e.g. camcorder) to 6-pin FireWire 400 cable
4-pin female → 6-pin male
Connects 6-pin FireWire 400 device to 4-pin DV cable
9-pin male → 6-pin female
Bridges FireWire 800 (Mac Pro, audio gear) to FireWire 400 cable
Passive adapters—no signal conversion, just pin remapping
Compact, often used inline or at port junctions

🖥️ Compatible Devices
📼 MiniDV camcorders (Canon GL1/GL2, Sony Handycam)
💻 Legacy Macs (PowerMac G4/G5, MacBook Pro pre-2012)
🎛️ Audio interfaces (MOTU, Apogee, Focusrite)
📷 Digital cameras and external drives
🧪 Embedded boards with IEEE 1394 headers

✅ Common Uses
🎥 Transfer DV footage from camcorder to computer
🎚️ Connect FireWire audio gear to older Macs
📼 Bridge FireWire 800 ports to FireWire 400 cables
🔄 Adapt cable ends for tight setups or legacy gear
🧪 Prototype FireWire chains in AV labs or retro rigs

🧠 Signal Format
🔌 IEEE 1394a (FireWire 400): 4-pin and 6-pin
4-pin: data only
6-pin: data + power
🔌 IEEE 1394b (FireWire 800): 9-pin
Faster speeds, backward compatible via adapter
🔁 No signal amplification or protocol conversion
⚡ Power only passed through 6-pin and 9-pin ends

⚠️ Things to Watch Out For
🚫 4-pin connectors do not carry power—no bus-powered devices
🔌 9-pin to 6-pin only supports FireWire 400 speeds
📉 Adapter adds mechanical stress—use short cables when possible
🔄 Not compatible with Thunderbolt or USB without converters
🧯 Always hot-plug with caution—FireWire ports can short if misaligned

🛠️ Quick Tips for Beginners
🧭 Match adapter to device port—not cable end
🔍 Use 4-pin for camcorders, 6-pin for powered gear
⚡ Avoid relying on bus power unless using 6-pin or 9-pin
📼 Label adapters clearly—especially in multi-port setups
🧪 Test with known-good cable before transferring critical data
