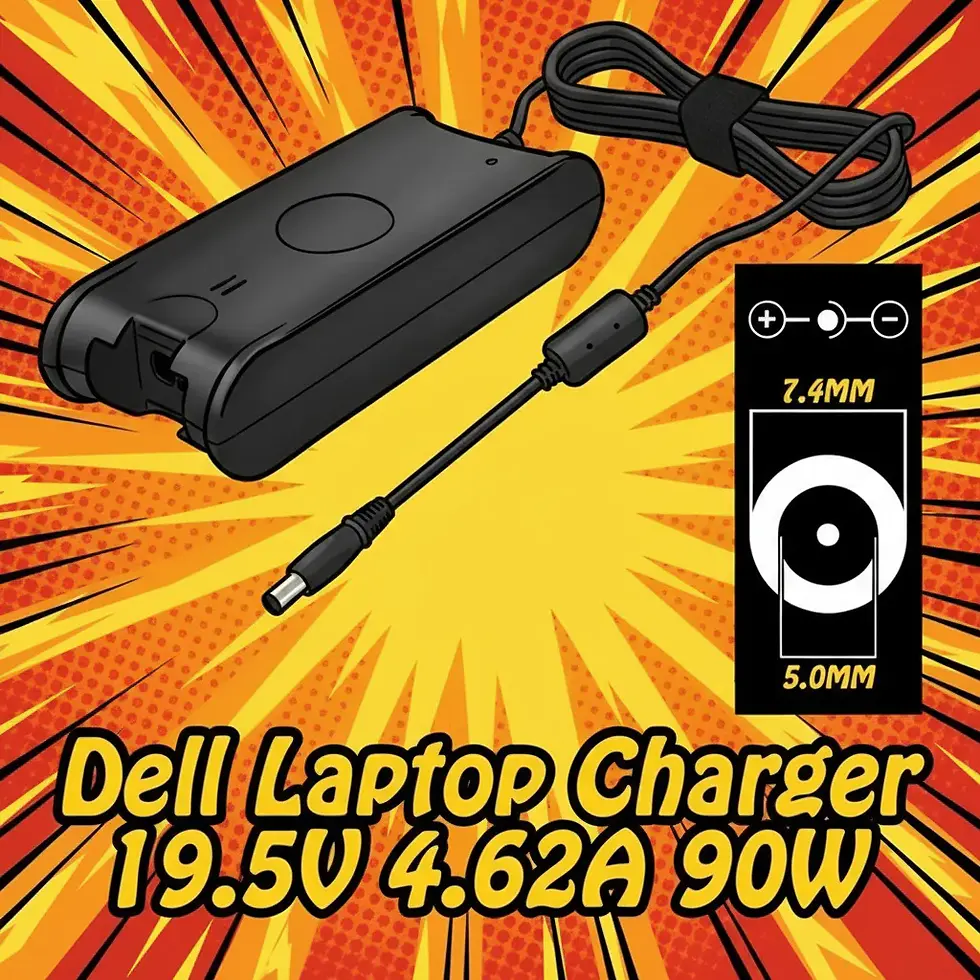

🔋💻 Dell PA-10 / PA-12 Laptop Charger

(90W AC Adapter • 19.5V 4.62A • 7.4mm/5.0mm Barrel w/Center Pin)

This power adapter converts AC mains into regulated DC output for Dell laptops. It delivers 90W of power at 19.5V, using Dell’s large-barrel connector with center pin for identification. It’s one of Dell’s most widely deployed chargers across Inspiron, Latitude, Precision, Studio, and early XPS systems.

🔧 Charger Form
Input: 100–240V AC, 50/60Hz
Output: 19.5V DC, 4.62A (90W)
Connector: 7.4mm outer / 5.0mm inner barrel with center pin
Inline “power brick” with detachable AC cord
Available in standard and slimline brick designs

🖥️ Compatible Devices
💻 Inspiron Series: Many 3000, 5000, 6000, 7000 models; Inspiron XPS (early generations)
🗄️ Latitude Series: D-series (D600–D830), E-series (E4200–E6500 and similar)
🎛️ Precision Mobile Workstations: M20, M60, M65, M70, M90, M2300–M4500
📺 Studio Series: Studio 15, Studio 17
🖧 Vostro Series: Select midrange models using 90W barrel connector
⚠️ Note: Some higher-end Precision and XPS laptops require 130W+ adapters; PA-10 will power them but may throttle performance

✅ Common Uses
🔌 Powering Dell laptops in home, office, or mobile setups
🧩 Replacing lost or damaged OEM chargers
🏢 Standardizing spares in IT departments and data centers
🎒 Keeping as a travel adapter for compatible Dell systems
🧪 Testing Dell laptops with known-good 90W supply

🧠 Signal Format
⚡ Input: Universal AC (100–240V)
🔋 Output: Regulated 19.5V DC, 90W max
🔑 Center pin communicates adapter wattage to laptop firmware
🔒 Provides both charging and direct power operation
🔁 Backward compatible with some 65W laptops (charges faster, but safe)

⚠️ Things to Watch Out For
📉 Using PA-10 on laptops requiring 130W+ may cause throttling or slow charging
🔌 Connector must be 7.4mm/5.0mm with pin — not interchangeable with Dell slim-tip or USB-C
🧯 Avoid third-party clones without center pin — laptop may reject them
🌀 Excess heat or frayed cables can cause intermittent charging
🧪 Always match adapter wattage to laptop’s rated requirement

🛠️ Quick Tips for Beginners
🧭 Check underside of laptop for required wattage before use
🔌 Keep one PA-10 at desk and one in travel bag for convenience
🧪 If laptop reports “adapter not recognized,” check center pin integrity
🧯 Use Dell-branded or high-quality replacements for reliability
🧵 Label adapters if managing multiple Dell models to avoid mix-ups
