🧠📡 BNC • BNC Adapter

These adapters connect or terminate BNC-equipped devices and cables. Gender changers allow two same-gender connectors to mate, while terminators prevent signal reflections in open-ended coaxial lines. They’re essential in surveillance, broadcast, and test setups.

🔧 Adapter Variants & Use Cases
🔌 BNC Male → BNC Male
Use Case: Join two female BNC cables or ports
Devices: DVR → monitor, or patch panel → coax extension
Ideal for extending cable runs or flipping connector orientation
🔌 BNC Female → BNC Female
Use Case: Join two male BNC cables or ports
Devices: Camera → recorder, or RF generator → analyzer
Common in modular AV and lab-grade setups
🔌 BNC Terminator (50 Ohm - 1% Tolerance)
Use Case: Precisely terminate unused BNC ports to prevent reflections
Devices: High-frequency test gear, SDI switchers, oscilloscopes
Ideal for precision environments requiring tight impedance control

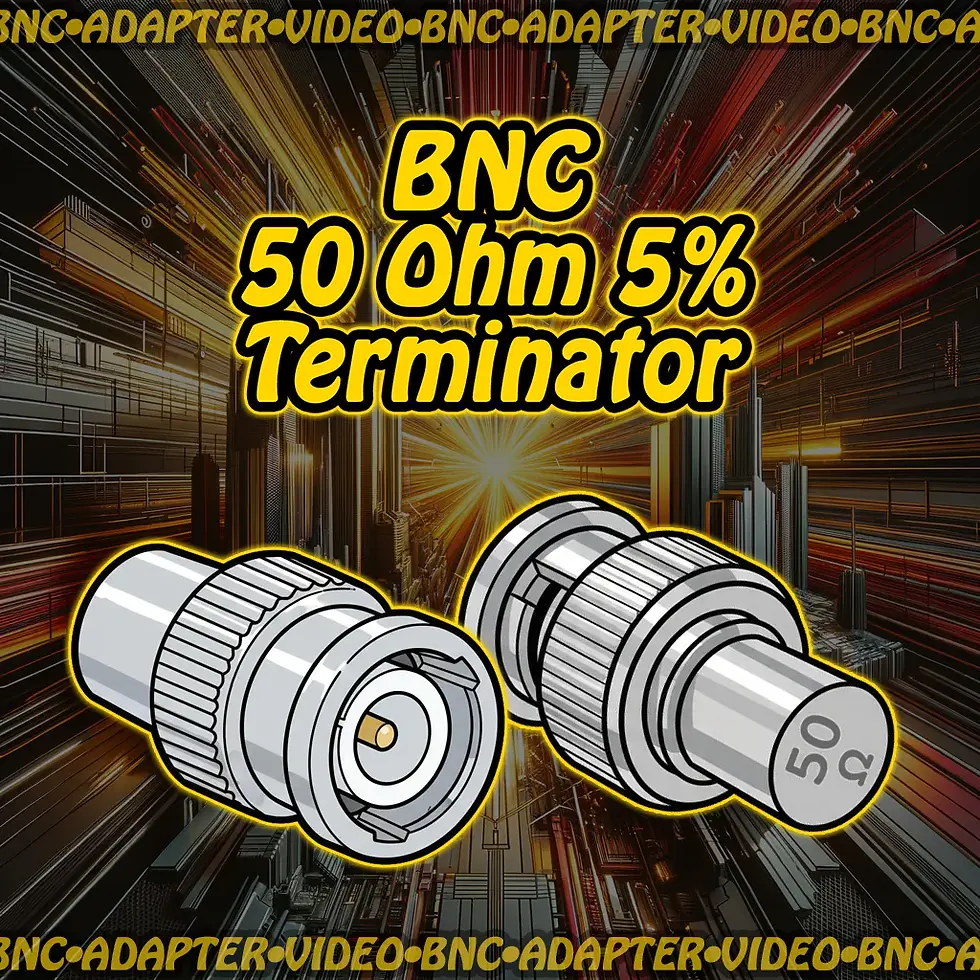

🔌 BNC Terminator (50 Ohm - 5% Tolerance)
Use Case: General-purpose termination of open BNC ports
Devices: CCTV DVRs, analog monitors, RF splitters
Suitable for everyday AV and surveillance setups

🖥️ Compatible Devices
📹 CCTV cameras, DVRs, and monitors
📺 SDI switchers, recorders, and broadcast gear
📡 RF analyzers, generators, and modulators
🧠 Oscilloscopes, signal testers, and lab equipment
🛠️ AV racks, patch bays, and coaxial distribution panels

✅ Common Uses
🧠 Extend or adapt BNC cable runs with gender changers
📡 Terminate unused BNC ports to maintain signal integrity
🛠️ Prevent ghosting, reflections, and impedance mismatch
🔁 Enable modular routing in AV and RF environments
🧪 Maintain clean signal paths in test benches and control rooms

🧠 Signal Format Notes
⚙️ BNC: 75Ω for video (RG59/RG6), 50Ω for RF/test (RG58)
📡 Terminators match impedance to prevent signal bounce
📉 1% tolerance = precision-grade; 5% = general-purpose
🔁 No signal conversion—pure physical interface or load
🔊 No audio—video/RF only

⚠️ Things to Watch Out For
🚫 Not suitable for HDMI, Ethernet, or audio signals
🔌 Match impedance—don’t mix 50Ω and 75Ω without proper planning
🧯 Loose adapters can cause intermittent signal loss
📉 Use 1% terminators for high-frequency or SDI setups
🧪 Always test continuity and termination before deployment

🛠️ Quick Tips for Beginners
🧠 Identify BNC by its twist-lock barrel and center pin
🔍 Use labeled adapters—especially in multi-rack environments
🧲 Choose gold- or nickel-plated connectors for durability
🧼 Clean contacts gently—dust can cause flickering or sync issues
🏷️ Label terminators by tolerance—1% vs 5%—for proper deployment
